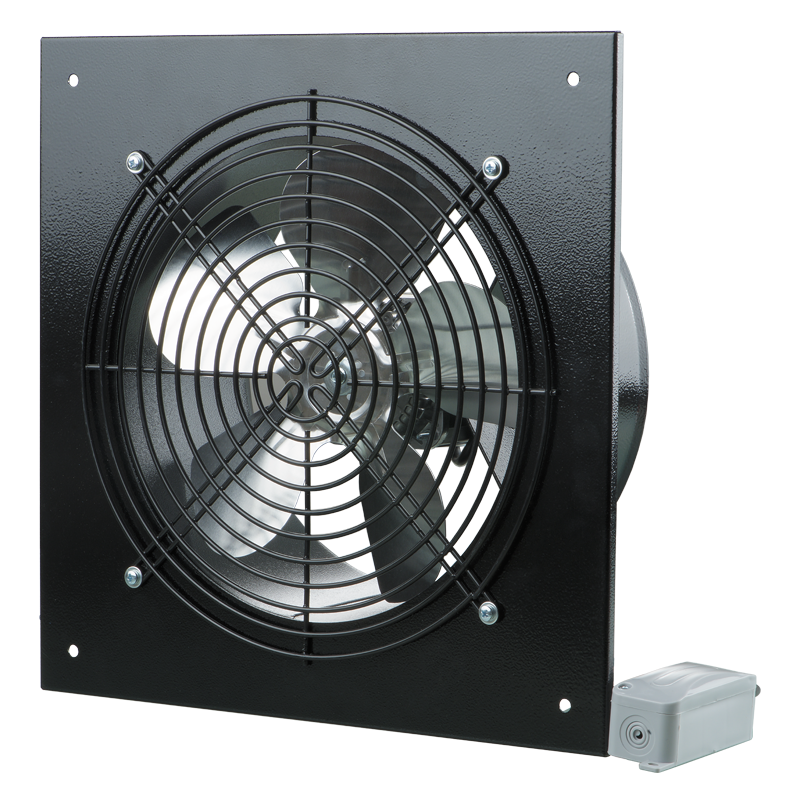

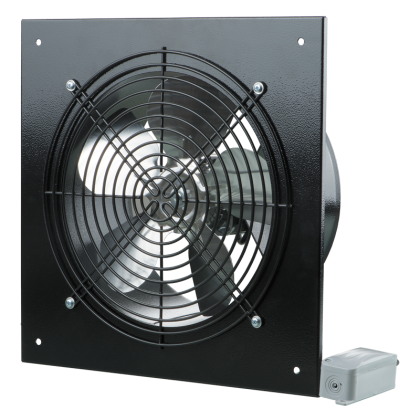

Axial fan VENTS OV1 200, 390 m3/h, low pressure, wall-mounted
Vents OV1 series axial fans are designed for the transfer of large air volumes at low pressure, with the possibility of wall or panel mounting. They are used for ventilation of commercial , office and other public or industrial premises . The fan has an asynchronous single-phase motor , with built-in thermal protection against overheating with automatic restart.
- for wall or panel mounting
- with steel body and aluminum fins
- application: combined ( suction and pressure ) ventilation system for various rooms where high airflow is required at relatively low system resistance
- diameter: ⌀ 208 mm
- max. flow rate: 390 m 3 /h
- Brand: Vents
-
Code:6256
-
Weight:3.500 Kgs
Quick Buy
Just 2 fields to fill in
Price:
€82.00
160.38лв.

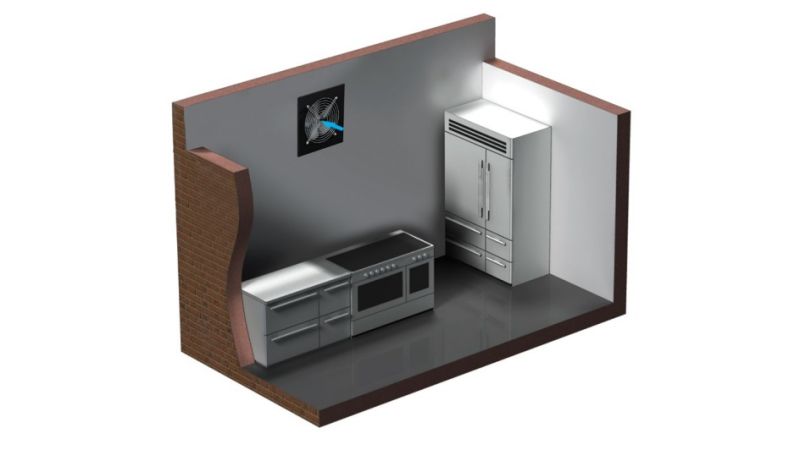

- Suitable for use in commercial , office and other public or industrial premises .
- Application: combined ( suction and pressure ) ventilation system for various rooms where high airflow is required at relatively low system resistance.
- Motor: the single-phase asynchronous motor is equipped with thermal overheating protection with automatic restart. The motor is equipped with plain bearings. Motor protection degree IP44 .
- Speed regulation: stepless speed regulation with external autotransformer ( sold separately ).
- Installation: wall or recessed mounting (duct); ( fixing brackets included ).
- Power supply: the fan is powered through the remote terminal box. Power supply and installation must be carried out in accordance with the manual and the connection diagram of the terminal box.
Technical characteristics:
- phases: 1
- voltage: 230 V
- frequency: 50 Hz
- power: 33 W
- current: 0.23 A
- max. flow rate: 390 m 3 /h
- rpm: 1410 rpm
- noise levels at 3 m. distance: 33 dBA
- min. temperature of the processed air: - 30°C
- max. temperature of the processed air: + 40°C
- protection level: dust and splash water resistant ( IPX4 , IP44 )
- fin material: aluminum
- Housing material: steel

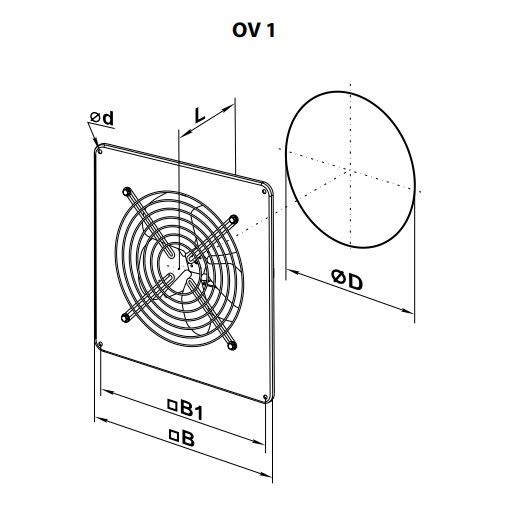

Overall dimensions of the fan (according to photo No. 3):
- diameter D: ⌀ 208 mm
- diameter d: ⌀ 7 mm
- W: 312 mm
- B1: 260 mm
- length L: 120 mm
- weight: 3.0 kg
