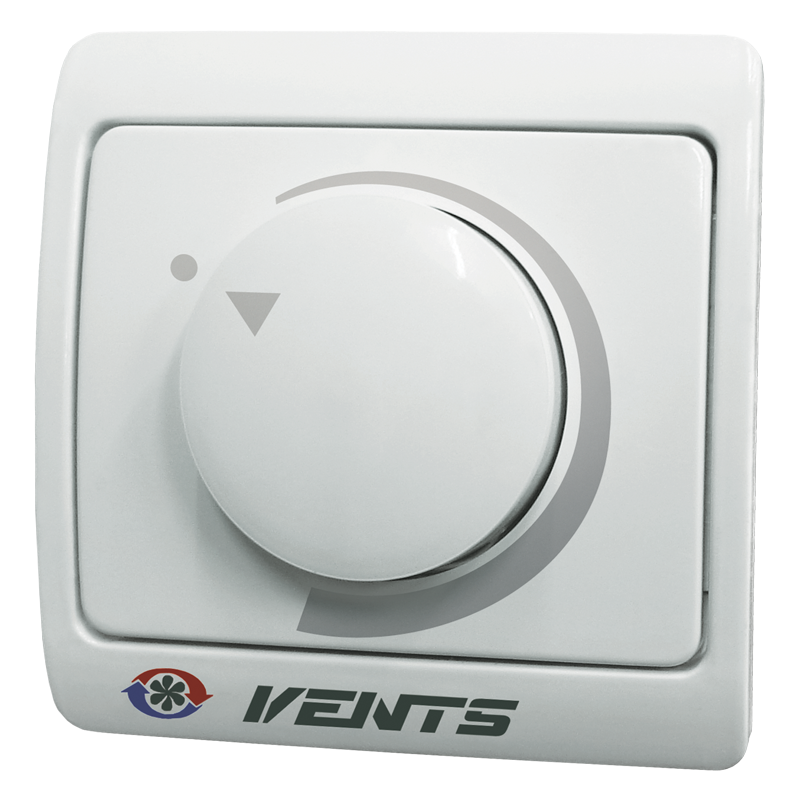

Fan speed controller VENTS RS-1-400 – 230 V, 1.8 A

RS-1-400 is designed for ventilation systems where manual and smooth speed control of a single-phase fan is required. Using the control potentiometer, the user can reduce or increase the voltage supplied to the motor and, accordingly, its speed.

Several fans can be connected to one controller at the same time , as long as their total current does not exceed the maximum allowable 1.8 A. The controller also includes protection through a replaceable thermal fuse and a filter against transient interference.

Technical characteristics

• Manufacturer: VENTS
• Series: RS-1
• Model: RS-1-400
• Type: Electronic speed controller
• Purpose: Single-phase voltage-regulated fan motors
• Power supply: 230 V
• Frequency: 50/60 Hz
• Phases: 1
• Rated current: 1.8 A
• Dimensions: 78 × 78 × 63 mm
• Weight: 0.11 kg
• Maximum ambient temperature: 35°C
• Protection degree: IP40
• Housing material: Plastic
• Adjustment: Smooth
• On/Off: Via the control button
• Protection: Replaceable thermal fuse
• Transient interference filter: Yes.

How it works

The RS-1-400 regulates the speed by changing the voltage supplied to the motor . The control starts from a preset minimum value and allows a smooth reaching of maximum speed. The minimum speed can be set via a potentiometer on the electronic board.

This is important with fans that should not be reduced below a certain speed to keep the motor stable and properly cooled.

Controlling multiple fans

One RS-1-400 can control more than one compatible fan simultaneously if:

total current of all connected fans ≤ 1.8 A.

For example, with two fans with a current of 0.6 A each, the total load is 1.2 A and remains within the permissible range.

It is important to always check whether the specific motor is suitable for voltage regulation .

Protection

The regulator has:

• replaceable thermal fuse for overload protection;
• filter against transient electrical interference ;
• IP40 housing. IP40 means that the product is intended primarily for dry indoor use and not for direct exposure to water or weather conditions.

Installation

RS-1-400 is designed for indoor wall mounting . It can be mounted:

• in a standard round electrical box;
• in MKN-3 box for surface mounting;
• in a MKV-4 box for concealed installation. Installation and electrical connection must be carried out with the power supply turned off and according to the manufacturer's diagram.

Compatibility

The RS-1-400 is used with various VENTS fans with single-phase AC motors, allowing voltage regulation .

Main advantages

✔️ Smooth speed adjustment
✔️ 230V / 50–60Hz
✔️ Maximum current 1.8 A
✔️ Turn on/off from the same control
✔️ Can control multiple fans at a total load of up to 1.8 A
✔️ Adjustable minimum speed
✔️ Thermal fuse
✔️ Compact dimensions 78 × 78 × 63 mm
✔️ Protection level IP40
✔️ Suitable for multiple single-phase VENTS fans.
