AGRO - PE Y филтър 3/4 25mm.

Just 2 fields to fill in

I agree to Privacy Policy

We will contact you to finalize the order

Send to friend

Compare

Price: €5.28 10.33лв.

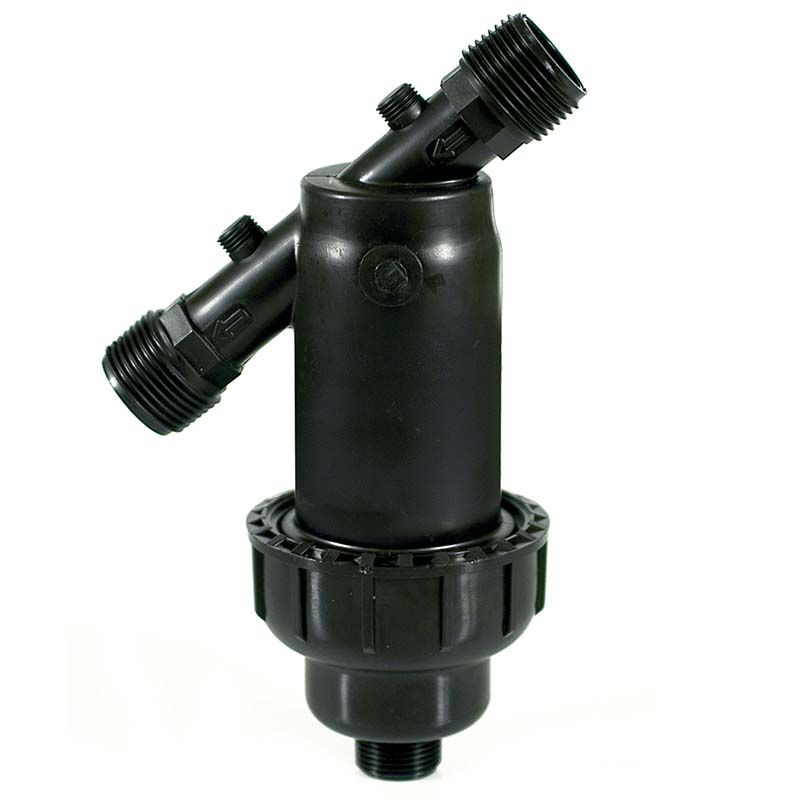

Linear disc filter type "D" with connection size 1" external thread.

Two 1/4" external thread outlets for pressure gauges.

To install pressure gauges, you need to drill holes on both outlets (1/4"). Install the pressure gauges using a 1/4" coupling.

See related products.

Filtration level - 120 mesh (130 microns)

Disc filter made of Polypropylene
Closing system	Threaded nut
Maximum pressure	10 bar at 20º C

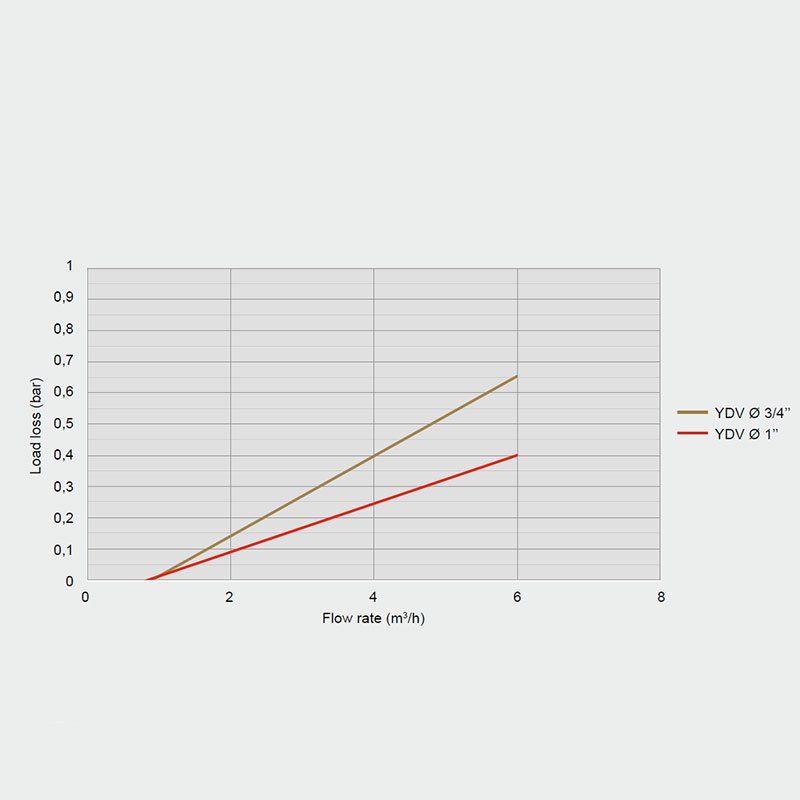

Debit	up to 5 m³/h

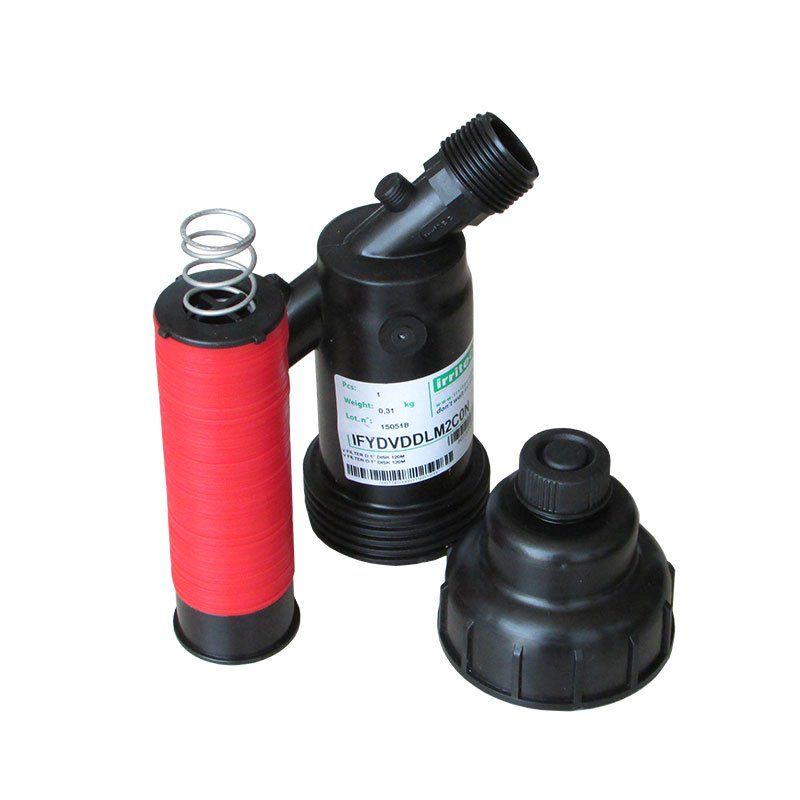

Filter element	Disc pack, 170 cm²
Disc pack diameter	47 mm
Disk pack length	150mm
Connection method	1" BSP thread
