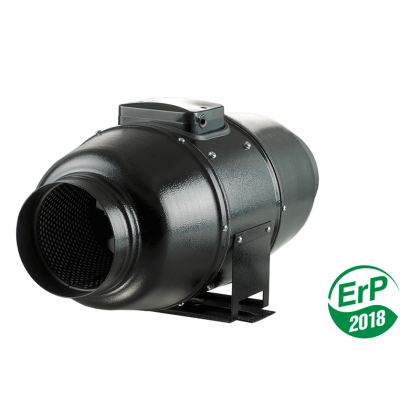

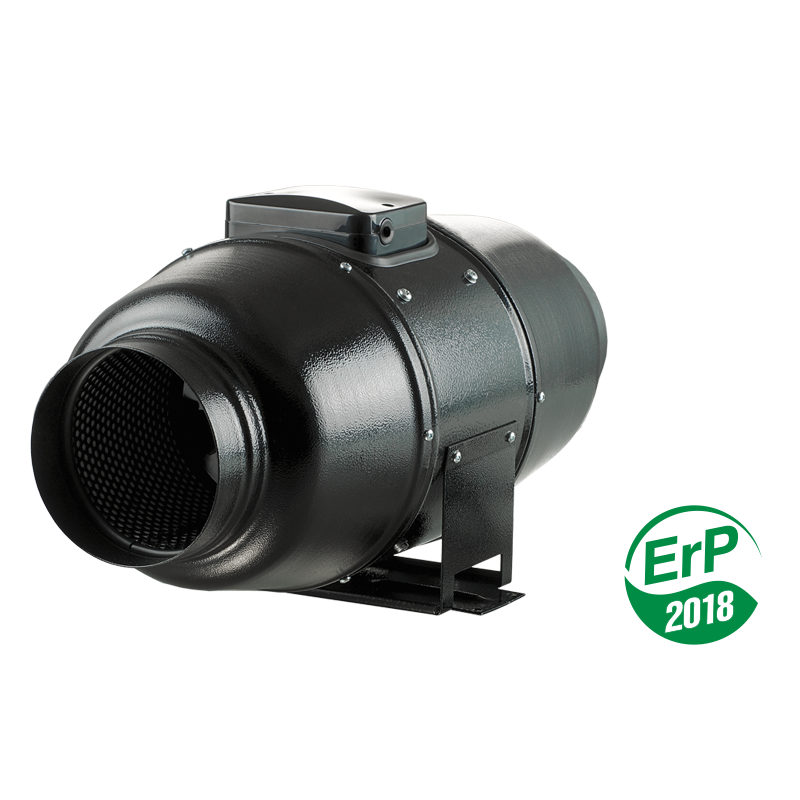

VENTS TT Silent-M 200 1,020 m³/h Sound-Insulated Inline Fan

VENTS TT Silent-M 200 1020m³/h is an in-line fan with a specially designed sound-insulated casing, providing quiet operation with high aerodynamic performance. Fans in the Silent-M series are highly suitable for ventilation systems in various commercial and industrial spaces with stringent noise-level requirements - libraries, conference rooms, educational institutions, kindergartens and more.

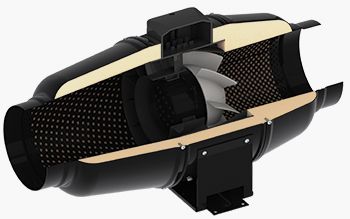

• specially designed outer casing made from polymer-coated steel
• the interior is covered with a 5mm layer of special thermal and acoustic insulation wool
• the inner housing section and impeller are made of high-quality durable plastic
• powerful airflow and high pressure
• single-phase, two-speed motor with low energy consumption
• motor fitted with ball bearings for a long service life of at least 40 000 operating hours

Technical specifications:

• internal diameter: ⌀ 200 mm
• voltage: 230V, 50/60Hz
• min. / max. power: 78W / 110W
• min. / max. current: 0.35A / 0.49A
• min. / max. airflow: 810m³/h / 1020m³/h
• min. / max. rpm: 2015 / 2445
• min. / max. noise level: 31dB / 36dB
• protection: IPX4
• dimensions W/H/L: x x mm
• weight: 8.0kg
• 1-year warranty


Note: the fan is supplied without a power cable!
